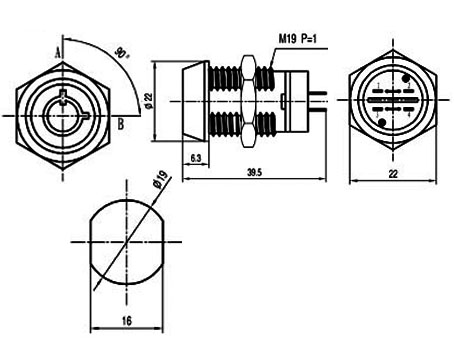

S1902

S1902

DESCRIPTIONS:
Green Zinc alloy die cast housing and cylinder.
Bright chrome or Green nickel-plated standard.
7 pin tumbler mechanism.
Brass made tubular keys, Green nickel-plated.
Key may be withdrawn in one or both positions.
Silver plated contacts and terminals.
2 position (off-on) 4 terminals.
Hex nut mounted.
1-10000 combinations available.

SPECIFICATIONS:
Contact Rating: 4A 125VAC, 2A 250VAC.
Contact resistance: 10 Milliohms Max.
Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
Dielectric Strength: 1500VAC - 1 Minute.


[1]
